VersaOBJECT LO/CO-i Series
VersaOBJECT logo

More Flexibility, More Opportunity

VersaOBJECT LO/CO-i Series Flatbed UV Printers

  • LIST PRICE

    Starting from AU $90,200

    CO-300i-F2 AU $90,200

    CO-640i-F3 AU $101,200

    LO-300 AU $121,000

    LO-640 AU $143,000

    RRP inc. GST

    ▼ See all models and prices

Take object customisation to new heights with the VersaOBJECT LO/CO-i Series of UV flatbed printers. Digital UV printing has never been more versatile. The LO/CO-i Series is the perfect solution for customising boards or objects up to 242 mm in height and even irregular 3D objects.

  • Premium quality direct-to-object or substrate printing.
  • Special effect printing for added-value products.
  • High-volume object customisation and personalisation.
  • Available in a size and configuration to suit your business.
Find a Dealer Download COi Brochure Download LO Brochure

Flatbed UV Printing Solutions

VersaOBJECT LO-640 UV printer top view

LO-640

Flatbed UV Printer
Throughput (W>CMYK)
5.0 m2/h
Max. Print Area
1,520 mm x 2,450 mm
Max. Print Height
242 mm
Attachable Objects
Weight
Max. 100 kg/m2
Available ink
CMYK, Gloss, White, Red, Orange, Primer
Ink Capacity and Type
750 ml Pouch
VersaOBJECT LO-300 UV printer top view

LO-300

Flatbed UV Printer
Throughput (W>CMYK)
3.4 m2/h
Max. Print Area
656 mm x 1,450 mm
Max. Print Height
242 mm
Attachable Objects
Weight
Max. 100 kg/m2
Available ink
CMYK, Gloss, White, Red, Orange, Primer
Ink Capacity and Type
750 ml Pouch
VersaOBJECT CO-640i UV printer top view

CO-640i

Flatbed UV Printer
Throughput (W>CMYK)
1.6 m2/h
Max. Print Area
1,612 mm x 2,500 mm
Max. Print Height
242 mm
Attachable Objects
Weight
Max. 100 kg/m2
Available ink
CMYK, Gloss, White, Red, Orange, Primer
Ink Capacity and Type
500/220 ml Cartridge
VersaOBJECT CO-300i UV printer top view

CO-300i

Flatbed UV Printer
Throughput (W>CMYK)
1.3 m2/h
Max. Print Area
749 mm x 1,500 mm
Max. Print Height
242 mm
Attachable Objects
Weight
Max. 100 kg/m2
Available ink
CMYK, Gloss, White, Red, Orange, Primer
Ink Capacity and Type
500/220 ml Cartridge
See specifications for more details

The Ultimate in Versatile Print Production

Deliver high-quality vibrant and impactful graphics onto a vast range of objects and substrates, including metal, plastic, board, wood, canvas, vinyl, paper and much more besides, accommodating material up to 242 mm height.

Interior Décor
Designs and photos printed directly onto glass are contemporary takes on traditional interior décor products, adding a high-shine, glossy effect to your print.
versaobjectcogenerator

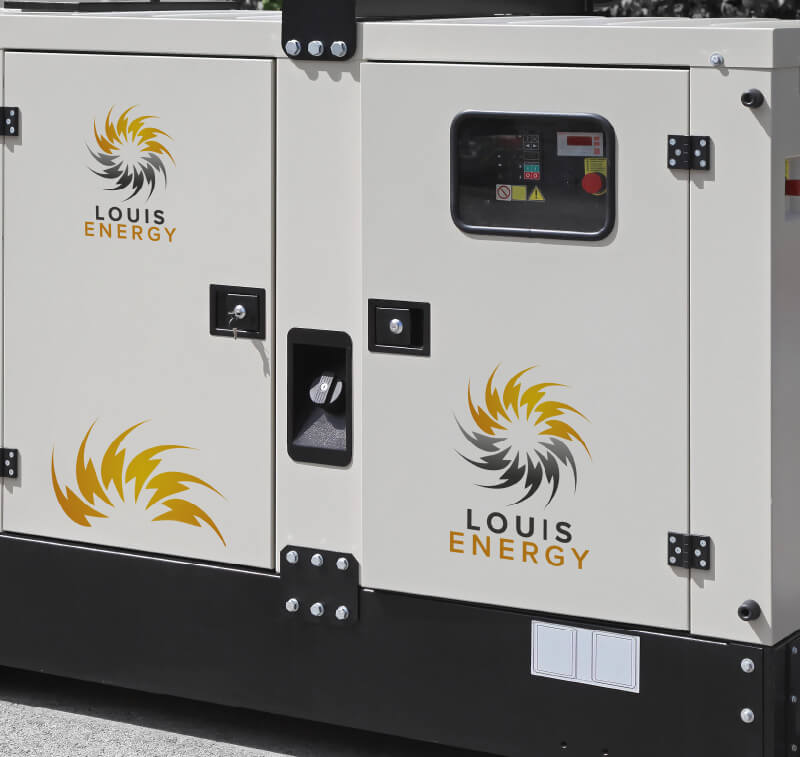

Industrial Print
Print images onto control panels, product housing, measurement devices or even large items such as doors or floor panels.
versaobjectcotray
Trays & Concave Surfaces
With Distance Mode, you can print onto concave surfaces with elevated edges, allowing you to customise trays, print on the inside of phone cases and more.
versaobjectcobottle
Bottles and Convex Surfaces
The Distance Mode feature makes it possible to print onto curved convex surfaces with consistent results, letting you customise bottles, balls, candles and more.
versaobjectcophonecases
Promotional & Personalised Objects
Produce promotional giveaways, personalised gifts, branded merchandise and trophies with excellent print quality and in a quick timeframe.
versaobjectcowallart
Sign & Graphics
Deliver exhibition graphics, retail signage, vehicle wrapping, display visuals, POP/POS, both indoor and outdoor.
versaobjectcopackaging
Packaging Mock-ups & Proofs
Create realistic packaging mock-ups, proofs onto original or substitute substrates, with accurate brand colours and a range of special effects.

Everything You Need to Succeed

LO/CO-i Series Flatbed UV Printer

Choose from 4 different models and sizes to suit your business

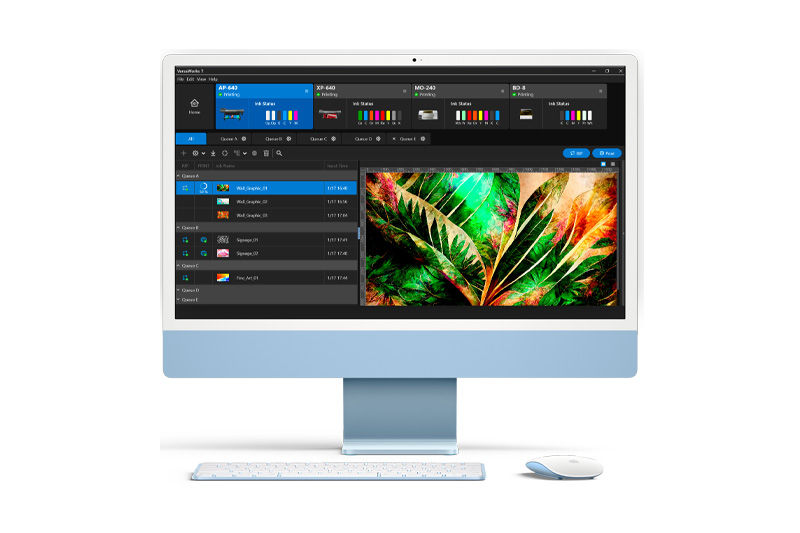

VersaWorks 7 RIP

RIP Software

Power your workflow with our most intelligent engine yet

Premium EUV Ink

Premium EUV Ink

Get stunning results every time with economical Eco UV ink

Roland DG Care Warranty

Roland DG Care Warranty

Secure your investment with industry-leading support

See specifications for all included items

High Quality and Versatile ink

Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.



CMYK

Get premium results
with high-quality
CMYK EUV ink

Gloss

Generate a multitud of
tangible effects, simulated
embossing and gloss finishes

White

Print high-opacity white
details or add sub-coats for
dark or transparent materials

Red and Orange

With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly

Primer

Apply primer to the print area
with precision for extensive
media compatibility

See Specifications for Ink Configurations

Certifications



GREENGUARD Certified

GREENGUARD Gold

ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.



Key Benefits


Broad Substrate Compatibility Broad Substrate Compatibility
Print onto a virtually limitless range of flexible and rigid substrates and objects.
Powerful Software Included - VersaWorks Powerful Software Included
VersaWorks 7 included, letting you print directly onto a variety of objects in a simple workflow.
The Roland DG Legacy The Roland DG Legacy
Make a safe investment with Roland DG’s world-renowned quality and reliability.
Efficient and Fluid Workflows Efficient and Fluid Workflows
Produce your work, your way with flexible job-management features.
Professional Colour Management Professional Colour Management
Match your customers' colour with ease thanks to advanced RIP features.
No Storage Costs No Storage Costs
Reduce your reliance on screen and pad storage and make your space work for you.
Printing Distance Mode Printing Distance Mode
Print directly onto irregular or curved objects with a high degree of accuracy.
Time Saving Turnaround Time Saving Turnaround
Switch to digital direct-to-object printing and eliminate long set-up and finishing times.
Low Running Cost Low Running Cost
Long-life print heads and ink-clogging prevention ensures long life and sustained quality.
Texture Libraries Texture Libraries
Add extra expression to your prints easily with a library full of exciting printable textures.
Mobile Cost Tracking Mobile Cost Tracking
Track ink usage and more in real time with the Roland DG Connect mobile app.
Zip! Fast Set-up and Ease of Use Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
▼ See all the benefits

Highlighted Features

Impressive Height and Weight Capabilities

Offering extraordinary application versatility, the LO/CO-i Series comes standard with a vacuum bed and can print on objects up to 242 mm in height and 100 kg/m2 in weight.

High-Definition, High-Value-Added Expression

The LO/CO-i series achieves high-definition image quality through fine control of ink ejection. Moreover, special expressions such as textures and embossing are also possible.

Print Large Quantities of Smaller Items

Improve your productivity with a fast and efficient direct-to-object printing solution. The LO/CO-i Series lets you print unique details on several items in a single print run and with VersaWorks 7 features like variable data printing, you can individually personalise each item quickly and with minimal set-up.

From high-production models to economy models

You can choose the best model for your work. The LO series is equipped with two print heads in a staggered array for highspeed output. LO-640 outputs 5.0m2/h for CMYK + White printing.

Distance Mode

The LO/CO-i Series flatbed UV printers feature an innovative Distance Mode. This makes it possible to print onto convex, concave or irregular surfaces whilst maintaining excellent quality and sharpness.

Low-Temperature Adjustable UV-LED Lamps

Intensity of the UV-LED lamps is adjustable from VersaWorks enabling them to be switched on or off, or anywhere in between. This means Gloss, Primer and White can be used as an adhesive layer before a secondary process to apply glitter or foil and then cured with UV to seal.

Integrated Control Panel

The control panel of the LO/CO-i Series is integrated into the table to allow you to work more efficiently in less space.

Safety Control Features

An emergency stop perimeter around base (and on the side of the device) safeguards operators in the busiest of production environments. Plus, there is a signal beacon with variable alerts to clearly highlight the printer status.

Powerful Software Included

The VersaOBJECT LO/CO-i Series is even more powerful when paired with Roland DG's advanced software solutions. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.

versaobjectcovologo
versaobjectcovologo

Create Value with Direct Printing

Introducing VersaOBJECT from Roland DG - a comprehensive solution that enables anyone to easily print directly onto 3D objects made of a variety of materials.

FIND OUT MORE

Specifications

Model LO-640-F3 LO-300-F2 CO-640i-F3 CO-300i-F2
Printing Method Piezo ink-jet method
Attachable objects to be printed on Width Max. 1,625 mm Max. 762 mm Max. 1,625 mm Max. 762 mm
Thickness Max. 242 mm
Weight Max. 100 kq/m2
Maximum Printing Width/Length Max. 1,520 × 2,450 mm Max. 656 × 1,450 mm Max. 1,612 × 2,500 mm Max. 749 × 1,500 mm
Ink
 Types ECO-UV (EUV5p) 750 ml pouch (Cyan, Magenta, Yellow, Black, Red, Orange, White, Gloss, Primer)

ECO-UV (EUV5) 500 ml cartridge(Cyan, Magenta, Yellow, Black, Red, Orange, Gloss, Primer)
ECO-UV (EUV5) 220 ml cartridge (White)
Colours Eight colours (Cyan, Magenta, Yellow, Black, Red, Orange, White, Gloss)
Seven colours (Cyan, Magenta, Yellow, Black, Red, Orange, White）
Seven colours (Cyan, Magenta, Yellow, Black, Red, Orange, White) and Primer
Seven colours (Cyan, Magenta, Yellow, Black, Red, White, Gloss) and Primer
Six colours (Cyan, Magenta, Yellow, Black, White, Gloss) and Primer
Six colours (Cyan, Magenta, Yellow, Black, White, Gloss）
Four colours (Cyan, Magenta, Yellow, Black)
Ink-curing Unit Built-in UV-LED lamp
Printing Resolution (dots per inch) Max. 1,200 dpi Max. 1,440 dpi
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving Function Automatic sleep feature
Power Requirements 230V 16A 2P+E
Power Consumption During Operation (100% Vacuum) Approx. 2.90 kW Approx. 1.80 kW Approx. 2.90 kW Approx. 1.80 kW
Sleep Mode Approx. 0.08 kW
Acoustic Noise Level During Operation 90 dB (A) or less 80 dB (A) or less 90 dB (A) or less 80 dB (A) or less
During Standby 80 dB (A) or less 70 dB (A) or less 80 dB (A) or less 70 dB (A) or less
Dimensions
(Width x Depth x Height)

2,901 mm × 3,457 mm × 1,560 mm
(114.3 in. x 136.2 in. x 61.5 in.)

2,037 mm x 2,430 mm x 1,560 mm
(80.2 in. x 95.7 in. x 61.5 in.)

 2,815 mm × 3,399 mm × 1,469 mm
(110.9 in. x 133.9 in. x 57.9 in.)		 1,928 mm × 2,384 mm × 1,469 mm
(76.0 in. x 93.9 in x 57.9 in.)
Weight 920 kg (2,029 lb.) 526 kg (1,160 lb.) 863 kg (1,903 lb.) 487 kg (1,074 lb.)
Environment During Operation (*1) Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation)
Not Operating Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation)
Included Items Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
1 Operating environment. (Use the machine in an operating environment within these ranges.)
