Make Your Mark

VersaSTUDIO MPX-90S Desktop Metal Printer

AU $6,924.50

RRP inc. GST

Perfect for gift personalisation, the VersaSTUDIO MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.

Small investment, big profit
Compact footprint
Engrave photos precisely

Find a Dealer Enquire Now

Pocket-sized Personalisation

The MPX-90S lets you create a wide range of custom engraved products easily and quickly. Simple to use without special expertise and filled with profit-making potential, this is a perfect solution to start your venture into personalisation with very little initial capital.

Printing Speed

50

mm/s

Max. Area

80x80

Photo Keyrings

12

per hour*

Personalised Pens

60

per hour*

SEE ALL APPLICATIONS

*figures for illustration only

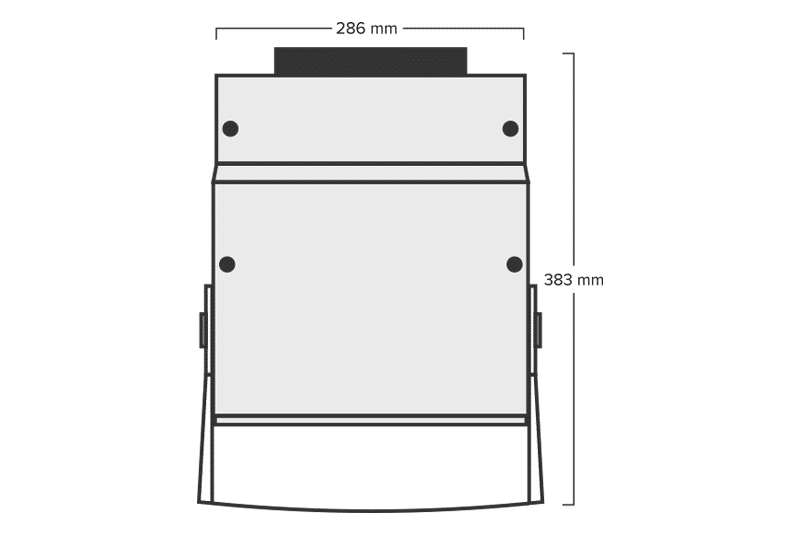

Less Space - More Opportunity

Start producing personalised products today. You can fit your entire business on an office desk or a kitchen table and create the foundation to build something even bigger in the future.

Engrave Photos on Metal

With the MPX-90S solution, you have everything you need to print text, logos and even photos onto metal items. In a matter of minutes, you can turn inexpensive blank items into highly desirable and lucrative products.

Profit with Personalisation

Today's customers want to buy one-of-a-kind gifts and they will gladly spend extra to get the perfect present. The MPX-90S gives you the power to create a wide variety of applications and capitalise on this growing trend.

You can make good money selling branded items like card holders and pens engraved with company logos, web addresses and phone numbers.

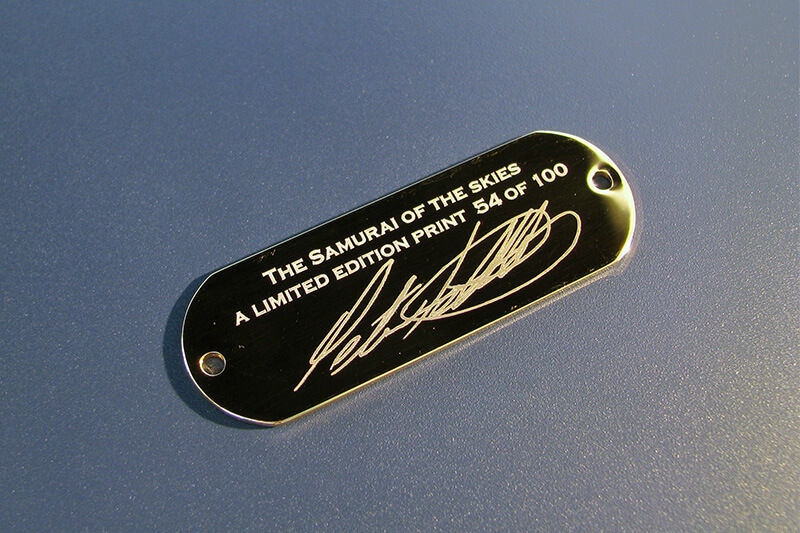

Buy blank metal plates at low cost, engrave details in a few moments and stick the plate onto trophies and awards.

From photographs and initials to fingerprints and sound waves, there are lots of ways to create custom jewellery with the help of a metal engraver.

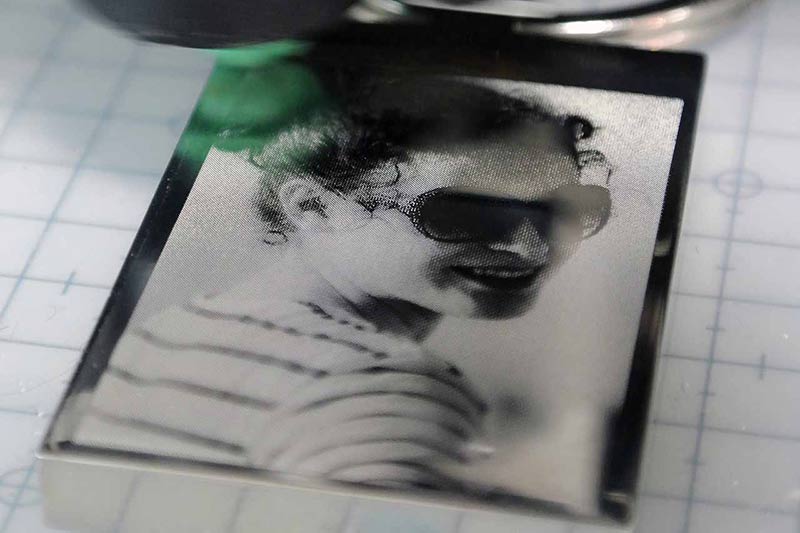

Metal key rings engraved with photographs make popular gifts and you can sell them with a high mark up.

Create personalised pet tags and dog collars adding names, phone numbers and even photos.

Key Benefits

	Great Return on Investment Quickly create high-quality products with a generous mark up.
	The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability.
	Clean Environment The device generates no shavings or dust and does not produce odours or smoke.

	Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
	Intuitive Software Included METAZA Studio included, letting you easily create designs and engrave in a simple workflow.
	Light and Portable Easily set up the device in any permanent space or take it to events for instant item marking.

▼See all the benefits

The Complete Solution

With the MPX-90S, you get more than just a device - you get everything you need to succeed.

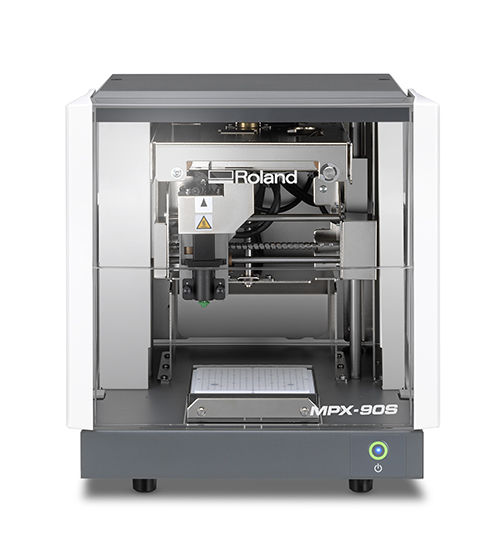

MPX-90S Metal Printer

Go even further with our latest desktop metal engraver*

METAZA Studio Software

Power your personalisation with this user-friendly software

Roland DG Care

Complete range of premium after-sales services

Clamping Tools

Mark a wide range of objects safely and securely

* See specifications for all included items

Additional Information

Expandir Todo | Desplegar Todo

Specifications

VersaSTUDIO MPX-90S

Model		MPX-90S
Imprintable material		Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, etc. *1
Loadable material size (width) × (length) × (thickness)
		Max. 100 mm × 200 mm × 40 mm
Imprint area		Max. 80 mm × 80 mm
Resolution	High resolution	529 dpi
	Photo	353 dpi
	Text	265 dpi
	Vector	1058 dpi
Imprint direction		Unidirectional imprinting or bidirectional imprinting *2
Imprint speed (Default)	High resolution	33 mm/sec
	Photo	50 mm/sec
	Text	33 mm/sec
	Vector	24 mm/sec
Interface		USB
Power requirements	Dedicated AC adapter	Input	100 to 240 VAC, 50/60 Hz
		Output	19 VDC, 2.1 A
	Rated current	1.6 A
	Power consumption	Approx. 24 W
Operating noise		70 dB (A) or less
Operating environment		Temperature: 10 to 30°C (50 to 86°F), humidity: 35 to 80%RH (no condensation)
External dimensions (width) × (depth) × (height)		286 mm × 383 mm × 308 mm (11.26 in. × 15.08 in. × 12.13 in.)
Weight		10.8 kg
Included items		AC adapter, power cord, test-use imprinting material, USB cable, Safety Precautions, etc.

*1 Vickers hardness [HV] of the imprinting surface must be 200 or less.
*2 Selectable with Windows driver

System Requirements for USB Connection

Model		MPX-90S
Computer		Model preinstalled with Windows 11, 10, or 8.1 (32- or 64-bit), or upgraded computer originally preinstalled with Windows 8.1 or later
USB cable
		Use the included USB cable.

Accessories

Head Unit and Caps

Head Caps for Round Surfaces

The Peace of Mind That Comes with Buying a Roland DG Device

With the MPX-90S you get the same built-to-last reliability and unmatched service and support that Roland DG devices are famous for. Like all Roland DG products, the MPX-90S was designed and manufactured at a state-of-the-art, ISO-certified facility. With a 3 Year Parts ‘N All Warranty, you have the peace of mind knowing your device is backed by one of the most comprehensive warranty packages in the industry.
