High Productivity, Authentic Quality

VersaOBJECTNEW MO Series Flatbed UV Printers

LIST PRICE

MO-180: AU $41,250

MO-240: AU $53,735

RRP inc. GST
RENTAL PRICE

MO-180: AU $927 / Month

MO-240: AU $1,209 / Month

For 60 months inc. GST
Roland Rental

Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO Series. Our advanced UV flatbed printer gives you the power to dominate a growing direct-print market through:

High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 or A3 print bed.
Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.

Find a Dealer Download Brochure

MO Series Lineup

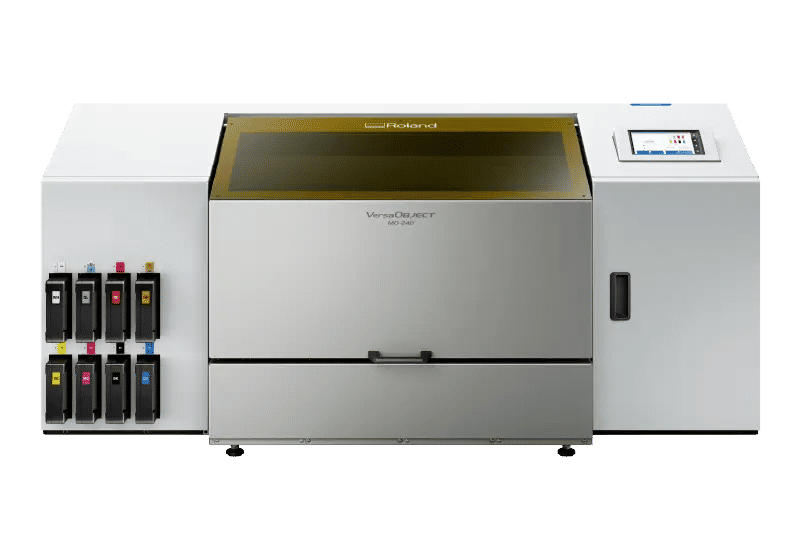

MO-240

Flatbed UV Printer

Printable Width

610 mm

Printable Length

458 mm

Max. Print Height

204 mm

Print Speed

2.39 m²/h

Available Ink

CMYK, Gloss, White, Red,
Orange, Primer

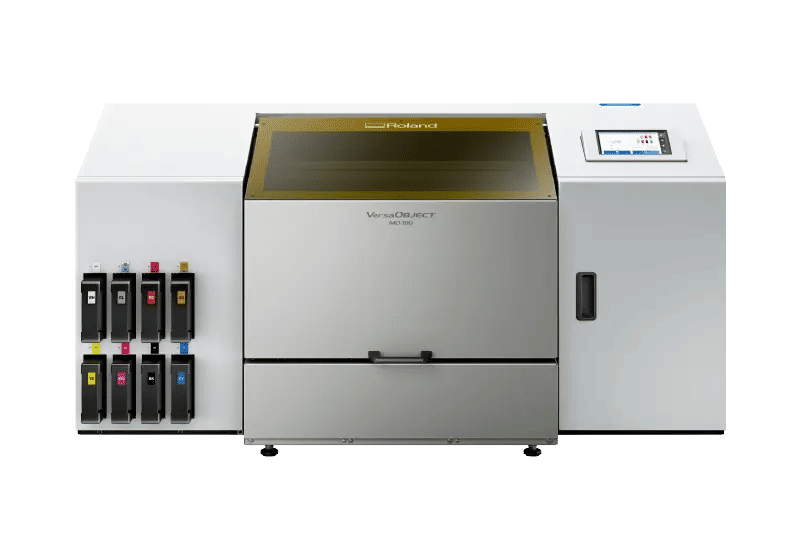

MO-180

Flatbed UV Printer

Printable Width

458 mm

Printable Length

305 mm

Max. Print Height

204 mm

Print Speed

1.90 m²/h

Available Ink

CMYK, Gloss, White, Red,
Orange, Primer

For everything from custom electronics to industrial units, flatbed UV printing provides unprecedented options for customisation on a wide variety of substrates.

UV flatbed printing gives producers the option to individually customise plates and labels using a full digital printing process, or as part of a hybrid printing system.

Unlock a lucrative new line of unique products, individually customised according to customers' tastes, with the ability to print vibrant graphics and even 3D gloss details.

Flatbed UV printing is the perfect choice for customising phone cases of all kinds from rugged, shock-proof cases to folding leather cases.

With over 200 mm of clearance between the print head and the printing bed, you can print graphics and branding directly onto cases, boxes and containers.

UV printing is an excellent choice for producing a wide variety of keypads and membrane switches, offering much greater flexibility than analogue printing methods.

The VersaOBJECT MO-240 lets users print onto flat media up to A2 size made from glass, metal, plastic, wood and more, and also gives the ability to print Braille text directly to signage.

Thanks to Distance printing mode, bottles and flasks can easily be customised in large batches, or an optional rotary printing unit can be added, allowing users to print around the entire cylinder.

Distance printing mode lets users print directly onto spherical items like golf balls with ease and produces crisp and vibrant print results.

Thanks to its excellent substrate compatibility and ability to print text and fine details with remarkable accuracy, UV printing is a perfect solution for producing custom trophies, awards and medals.

Compared with more restrictive analogue processes like screen and pad printing, flatbed UV printing offers excellent flexibility when customising entire products or components.

Everything You Need to Succeed

MO Series Flatbed Printer

The latest and most advanced UV printer for your business

VersaWorks 7 RIP

Power your workflow with our most intelligent engine yet

Premium EUV Ink

Premium EUV Ink

Get stunning results every time with economical Eco UV ink

Roland DG Care

Roland DG Care

Complete range of premium after-sales services

See specifications for all included items

High-Definition Print

Newly developed print heads and LED lamp technology, coupled with advanced software and industry-leading inks give you the power to reproduce small letters, fine textures, gradations, and colour-matched graphics with ease. Furthermore, Orange and Red inks extend your achievable gamut letting you hit colours that previously could not be reproduced.

Whether you need vibrant image reproduction, high-opacity white ink, or the ability to print textures, the MO Series UV printers are the answer.

High Productivity

The MO Series is engineered to deliver high productivity with print speeds up to 1.4 times faster than comparable models from other brands. The staggered print head configuration, powerful lamps and increased bed-size deliver printing speeds of up to 2.39 m2/h in standard mode*, letting you get more done. Denser white ink means you can print white twice as fast as previous models and Gloss ink can now be printed in thicker layers, doubling the speed.

Improvements to the setup process make it easier to switch between products and jigs of items with ease. The included software also lets you unlock unprecedented productivity with multi-layer printing, meaning that you can outperform your competition when printing on almost any substrate.

_{*MO-240 only}

Greater Flexibility

Roland DG's EUV5 ink is renowned for its broad material compatibility and excellent adhesion. With just one ink formulation, you can print onto a variety of substrates, increasing your ability to adapt to changing market demands.

The MO Series also allows you to go beyond flat substrates thanks to built-in technologies including ‘distance mode’ printing and optional extras such as the rotary printing unit. With these features you can go even further with direct printing and move towards new opportunities.

Excellent Usability

Roland DG's solutions are designed for easy installation, set-up and operation. You can confidently operate these professional devices with a quick learning curve thanks to the user-friendly 7-inch touchscreen and intuitive VersaWorks 7 RIP software.

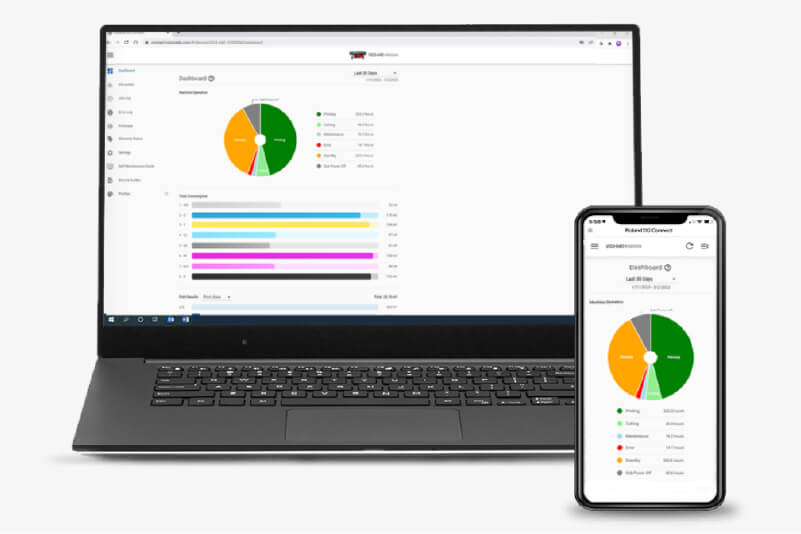

With the Roland DG Connect device monitoring app, you can also get real-time data about your print workflow, letting you schedule maintenance and improve profitability.

Highlighted Features

Staggered Print Heads

Achieve faster printing speeds than ever before with our new large print heads in a staggered array to accelerate CMYK, white and special effects printing.

UV Lamps

Our newly developed UV curing lamps, three times more powerful than conventional lamps, cure and fix the ink in a shorter period of time, enabling increased productivity, whilst maintaining high definition printing.

Vacuum Bed

The MO Series comes with a vacuum bed as standard, which lets you print on a wider range of substrates including thinner, more flexible materials.

7" Touch Screen

Easily operate your MO Series and access all the features you need with a clear 7" touch screen and intuitive user interface.

Features Summary

	Broad Substrate Compatibility Print onto a virtually limitless range of flexible and rigid substrates and objects.
	Powerful Software Included VersaWorks 7 included, letting you print directly onto a variety of objects in a simple workflow.
	The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability.
	Efficient and Fluid Workflows Produce your work, your way with flexible job-management features.
	Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features.
	No Storage Costs Reduce your reliance on screen and pad storage and make your space work for you.

	High Image Quality Reproduce premium-quality images and gain an edge against your competitors.
	Time Saving Turnaround Switch to digital direct-to-object printing and eliminate long set-up and finishing times.
	Texture Libraries Add extra expression to your prints easily with a library full of exciting printable textures.
	Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app.
	Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
	Printing Distance Mode Print directly onto irregular or curved objects with a high degree of accuracy.

▼ See all the benefits

Optional Rotary Printing Unit

The new optional Rotary Axis is quick and simple to install and opens opportunities for printing onto bottles and other cylindrical items 10-121 mm in diameter and 30-540 mm in length.

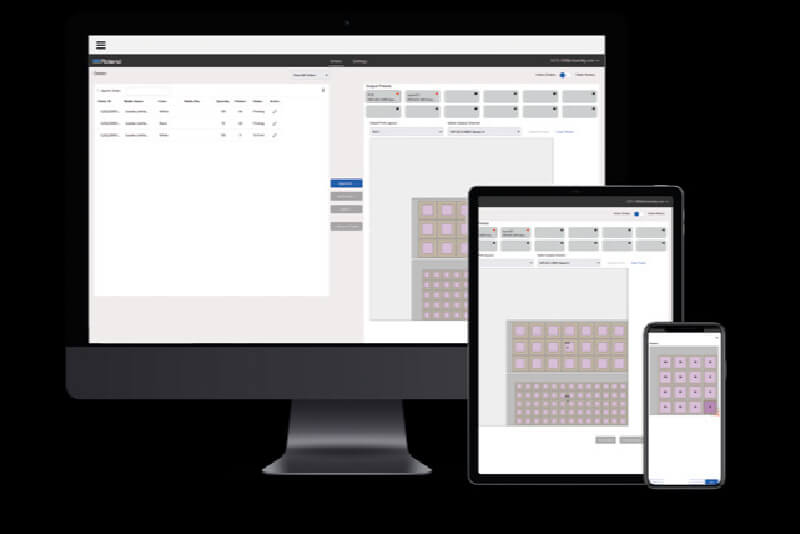

Powerful Software Included

The VersaOBJECT MO Series solution is even more powerful when paired with Roland DG's advanced software solutions. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.

LEARN MORE

Specifications

Model			MO-240	MO-180
Printing Method			Piezo ink-jet method
Attachable objects to be printed on	Width		Max. 640 mm (25.1 in.)	Max. 488 mm (19.2 in.)
	Length		Max. 488 mm (19.2 in.)	Max. 335 mm (13.1 in.)
	Thickness		Max. 204 mm (8 in.)	Max. 204 mm (8 in.)
	Weight		Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.])
Printing width/printing length (width x length)			Max. 610 mm × 458 mm (24 in. × 18 in.)	Max. 458 mm × 305 mm (18 in. × 12 in.)
Ink	Type		ECO-UV (EUV5P) 750 ml pouch
	Colours		Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red） Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, White） Four colours (Cyan, Magenta, Yellow, Black)
Ink-curing unit			Built-in UV-LED lamp
Printing resolution (dots per inch)			Max. 1,200 dpi
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100 - 240 Va.c. 50/60 Hz 3.5A
Power consumption		During operation	Approx. 290 W
		Sleep mode	Approx. 70 W
Acoustic noise level		During operation	60 dB (A) or less
		During standby	49 dB (A) or less
Dimensions (width x depth x height)			1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.)	1,449 mm × 961 mm × 760 mm (57.1 in. × 37.9 in. × 30.0 in.)
Weight			211 kg (465.18 lb.)	174 kg (383.61 lb.)
Environment		*During operation(1)**	Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation)
		Not operating	Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation)
Included Items			Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc.

¹ Operating environment (Use the machine in an operating environment within these ranges.)
Humidity vs Temperature

Roland DG’s Industry-Leading Warranty and Support

For over 40 years, Roland DG has provided industry professionals with the most advanced and reliable machines, backed by unmatched customer service and technical support. The MO Series comes with a 3 Year Heads N' All Warranty to give you added peace-of-mind and machine support.
