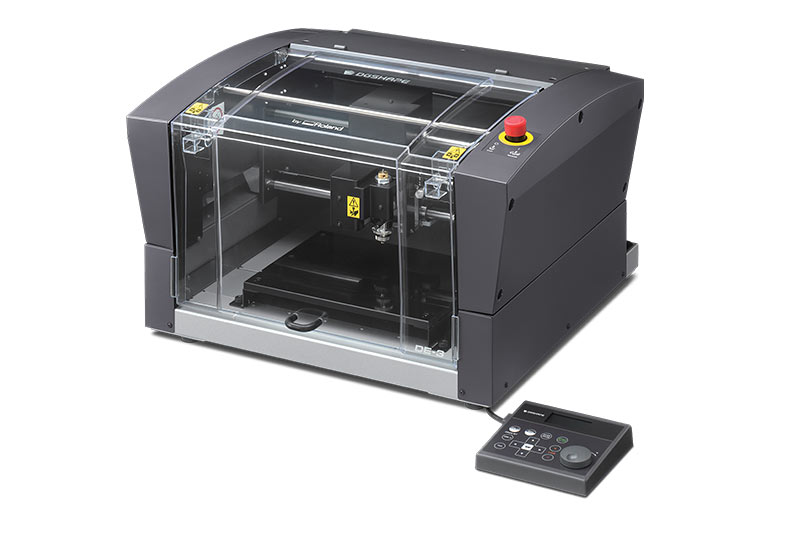

DE-3 Desktop Engraver

LIST PRICE

AU $10,877.90

RRP inc. GST
RENTAL PRICE

AU $272

For 60 months inc. GST
Roland Rental

For over 30 years Roland DG has lead innovation in rotary engraving technology and continues to break new ground with the DE-3 DGSHAPE Engraver. Featuring laser-pointing technology, automatic depth regulation and other intelligent enhancements, the DE3 is the smartest, most intuitive rotary engraver on the market.

Find a Dealer Enquire Now

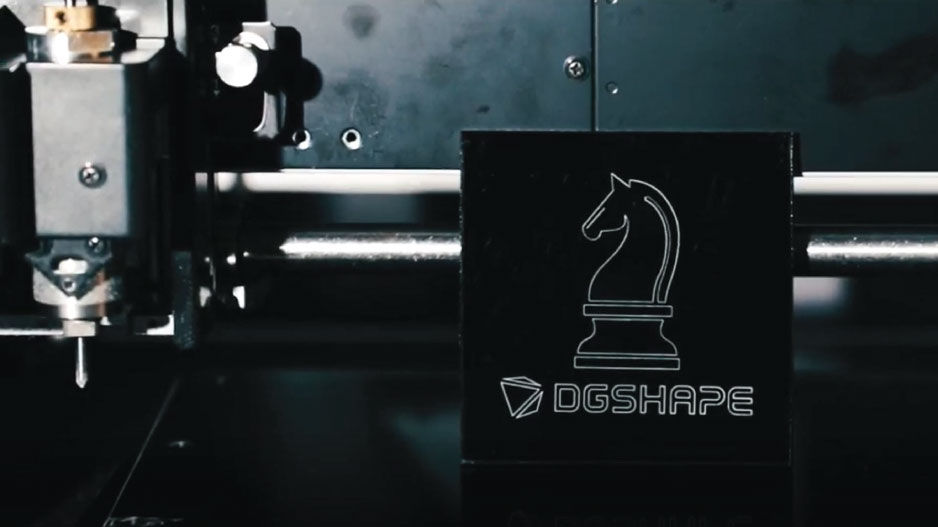

Discover More Applications with DE-3 Engraving

Effortlessly scribe and engrave onto a huge range of giftware, signage, trophies, tools and industrial products. Personalise brass, aluminium, copper, engraving plastic, wooden items and more, with the speed, precision and ease of the powerfully compact DE-3.

**Engrave onto a range of plastics and composite materials that include PCB circuit boards.**

**Scribe names and graphics onto glass and acrylics with the versatility of the DE-3.**

**Engrave onto gold, silver and other high-value metals to create profitable personalised giftware.**

**Add text and graphics onto plaques and signs with crisp, clean precision, and without the surface burning that laser engravers produce.**

**Personalise industrial tools, nameplates and safety signs in metal, plastic, and other materials.**

**Create ADA compliant signage with the addition of all-in-one ADA Signage Kit.**

Laser Pointer

A laser pointer accurately defines the origin point and displays an engraving path preview on the media— set the engraving position at the touch-of-a-button for accurate personalisation every time.

Precision Engraving

Easily-applied nose cones can be added to the spindle unit to automatically regulate engraving depth on the media surface— avoiding scratches to delicate materials and delivering consistently precise results.

Fast and Easy Production

Powered by a 20,000 rpm DC brushless motor, the DE-3 utilises advanced surface detection and other automatic features to make set-up and engraving a quick and simple process.

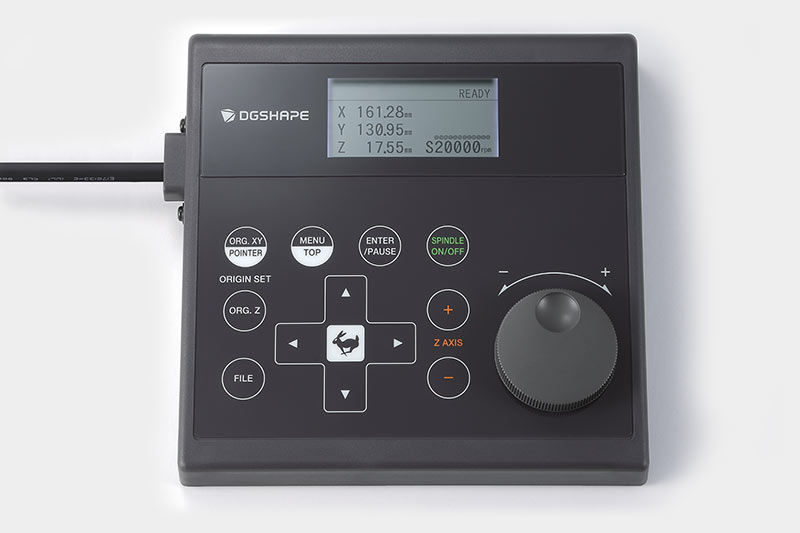

Hand-Held Control

Without the need for a computer, you can quickly select machine options such as spindle speed and one-touch machine cleaning. Engraving job data can be sent from your computer and stored in the controller after the PC is disconnected.

New Software and Open Architecture

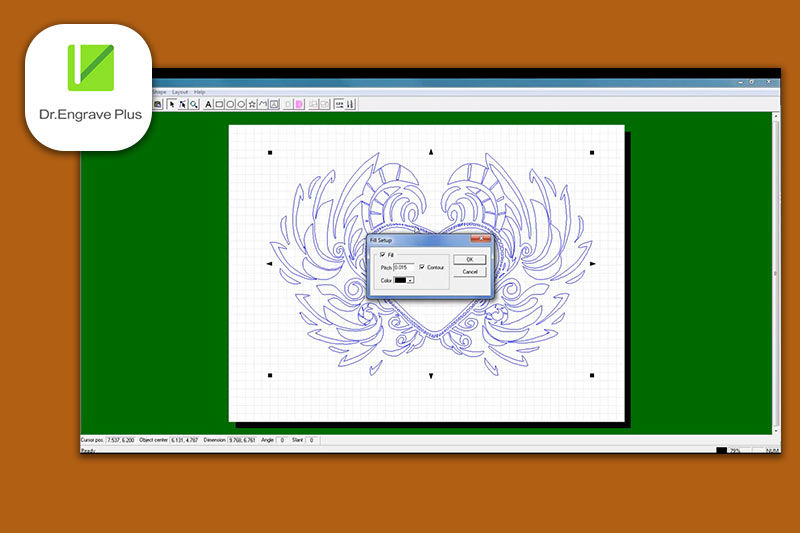

The DE-3 is open source technology that works out-of-the-box with all popular engraving software, industry standard tools, and materials. Also included with purchase of the DE-3 is Dr. Engrave Plus software that offers new user advantages.

Now supports AI files and standard graphic/vector data
Newly added levelling and drilling functions enable standard text engraving as well as surface levelling and hole drilling
Retains handy template functions and Excel and CSV databases for fast engraving of serial data jobs

Additional Features

	A desktop machine that performs like a production class engraver
	Additional center vise available that holds objects up-to 5.9” (X) by 5.8” (Y) by 1.3” (Z)

	Small footprint machine with an ample 12” by 9” work area fits comfortably into offices, classrooms and workshops
	Offers a safe and clean engraving solution with a fully-enclosed engraving operation

Specification

DE-3

MODEL		DE-3
Work Table Size		305mm x 230mm
Maximum Work Area (Work Envelope)		12”(X) x 9.1”(Y) x 1.6”(Z) 305 mm(X) x 230 mm (Y) x 40mm (Z)
XYZ Axis Drive System		Stepper motor, 3-axis simultaneous control
Operating Speed	XY axis:	0.1 ～ 60 mm/sec.
Operating Speed	Z axis:	0.1 ～ 30mm/sec.
Software Resolution		0.004” (0.01 mm) /step
Mechanical Resolution	XYZ-axis:	0.00125 mm/step
Spindle Motor		Brushless DC Motor
Spindle Speed		5,000 ～ 20,000 rpm
Tool Loading		Cutter Holder, Collet Type
Maximum Material Thickness		40 mm（38 mm when using the nose cone）
Connection		USB
Connection
Machine Language		RML-1
Power Supply	Voltage and Frequency	AC100V ± 10%、50/60Hz（Overvoltage category: Category Ⅱ, IEC60664-1)
Power Supply	Rated Current	1.0 A
Power Consumption		80 W
Operating Noise	While Operating：	60 dB（or less)
Operating Noise	Standby：	40 dB（or less)
External Dimensions		616mm × 587mm × 390mm
Machine Weight		35 kg
Installation Environment	Indoor use, altitude:	2000 m or less
	Temperature	5 to 40 °C
	Humidity	35 to 80% (no dew condensation)
	Environment pollution degree:	2
Bundled Accessories		"Power cord, power adapter, USB cable, nose cone unit (resin / metal components), nose unit set screw (fixing screw, spring), spare set screw (for cutter holder) , Solid collet (∅ 3.175 mm), spanner wrench, hex wrench, hex driver, adhesive sheet, dust collector adapter, DGSHAPE Software Package CD, Setup Guide"

Warranty

Reliability and Support

As the world leader in desktop rotary engraving devices, Roland DG offers users unmatched product performance and reliability, backed by industry-leading service and support. The DE-3 comes with a three-year parts n' all warranty. As the world leader in desktop rotary engraving devices, DGSHAPE offers superior machine reliability, backed by the best service and support in the industry.

Roland DG’s international ISO certifications are a guarantee of exceptional quality.
