From in-clinic to dedicated high-production labs, the DWX-42W Plus is engineered to fit your milling needs.

DWX-42W Plus Wet Dental Mill

  • LIST PRICE

    AU $54,279.50

    RRP inc. GST

    CAM software not included

  • RENTAL PRICE

    AU $1,221 / Month

    For 60 months inc. GST

    DGSHAPE FINANCE

The DGSHAPE DWX-42W Plus enables wet milling of popular glass ceramic and composite resins with high precision and accuracy.

  • High speed production with proprietary DGSHAPE spindle
  • Expanded 6-tool Automatic Tool Changer for uninterrupted milling
  • Included VPanel for easy monitoring of milling jobs and tools

Find a Dealer Enquire Now

Incredibly Accurate, High Aesthetic Restorations

Materials

Composite Resin Pin

Composite Resin
Superior margins and chip resistance

Glass Pin

Glass Ceramics
Consistent flexural strength, optimised fit

Glass Pin

Titanium
Produce high value, custom abutments

Applications

Copings

Applications

3-Unit Bridges
Copings
Crowns
Inlays
Onlays
Veneers

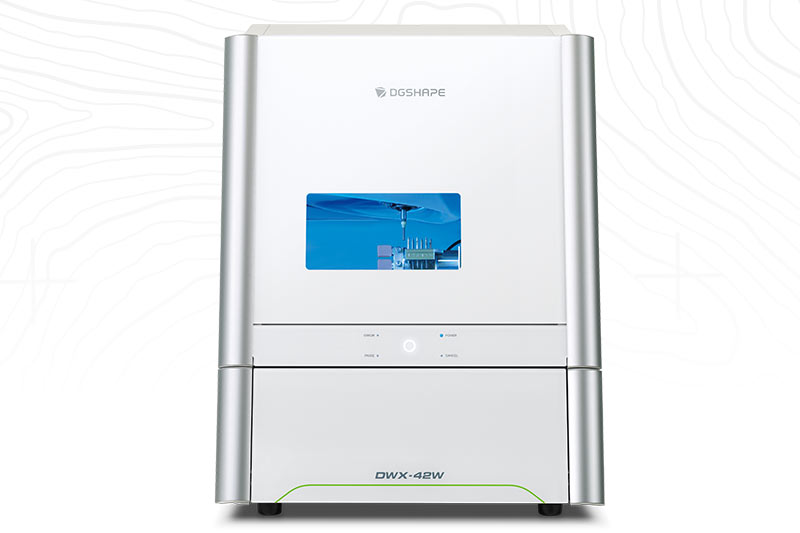

DWX-42w Wet Dental Milling

A Mill That Fits Your Needs

DWX-42W

High Production Lab

  • Expand production by adding a standalone wet-milling option, designed for glass ceramic and composite resin materials
  • Get the same open architecture flexibility and high-quality performance as DGSHAPE dry mills, in a wet-milling configuration
  • Offer on-demand production of high-aesthetic, dental prosthetics

Lab Workflow

In-Clinic Lab

  • Offer your patients a same day service with ultra-accurate prosthetics – produced with an easy-to-operate machine and simplified workflow
  • Open architecture allows seamless integration with existing scanning devices

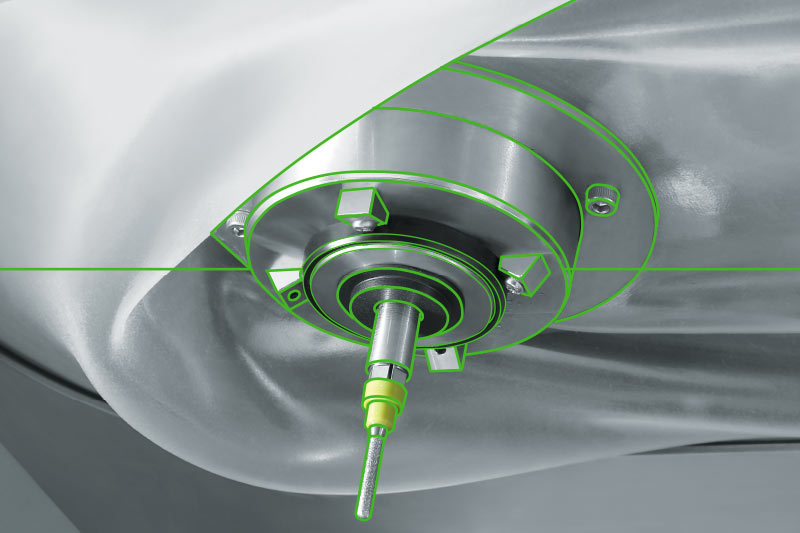

Spindle of the DWX-42W

Specially Designed Spindle

  • 50% LESS Air Pressure Needed
  • Designed and built by DGSHAPE— using over 35-years of cutting-edge engineering excellence
  • A robust, all-metal spindle offers solid performance and maximum efficiency
  • Doesn’t require a high-volume compressor— perfect for in-clinic labs
Less Air Pressure Needed

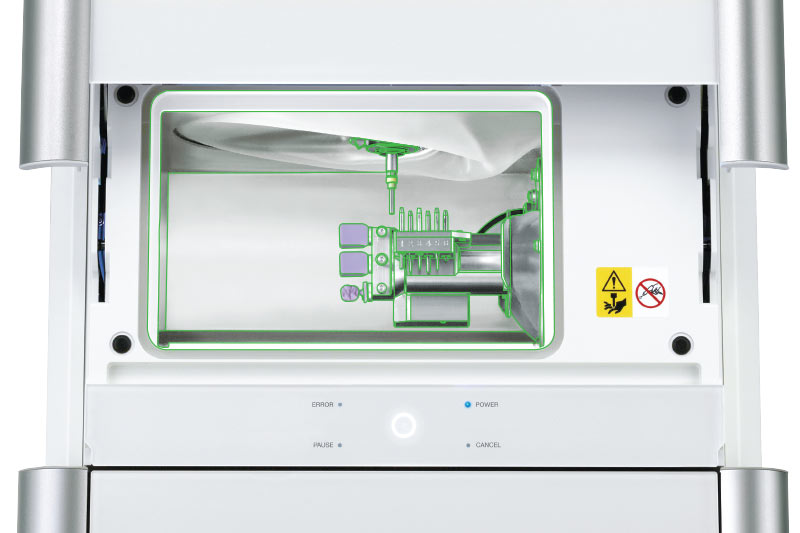

Close up of DWX-42W Machine

Elevated Performance

ATC

6-STATION AUTOMATIC TOOL CHANGER (ATC)

for uninterrupted production

Snowflake

Newly Designed
NOZZLES AND COOLANT TANK
for greater flow and capacity

dual filter icons
Specially Engineered
DUAL FILTERS
require replacement less often, saving cost and time
Burs

Brand new burs offer
GREATER STABILITY & FINE MILLING QUALITY

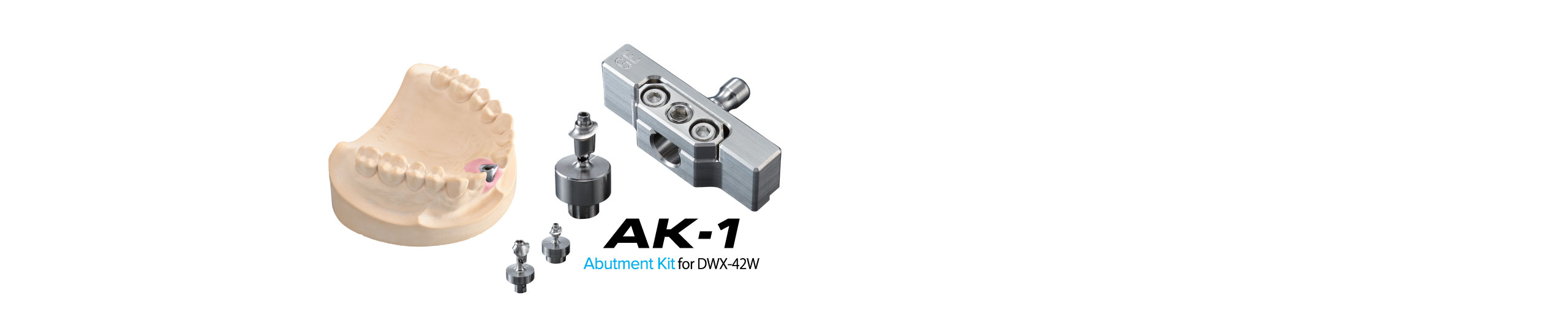

In-house Production of Custom Abutments

Titanium alloy abutment blanks can now be milled with the optional AK-1 abutment milling kit (sold separately). Simply connect the AK-1 attachment to the center pin of the DWX-42W Plus material holder to produce high value, custom abutments. DGSHAPE’s new special-purpose milling burs can process pre-milled titanium blocks with ease.

FIND OUT MORE

Enhanced User Experience

Upgraded V-Panel
Complex controls are replaced with an easy interface to monitor milling jobs and tool life.

DGSHAPE Cloud Software

NEW DGSHAPE CLOUD Remote Management of All Current DGSHAPE Dental Mills from One Location

Enhance your business' ROI and minimise downtime with DGSHAPE CLOUD performance visualisation software that allows for remote monitoring of the new DWX-53DC, DWX-52DCi, DWX-52D and DWX-42W mills from one location, desktop or mobile. The new, enhanced dashboard with artificial intelligence (AI) allows for remote monitoring of mill performance, productivity, mill maintenance, tool usage and more.

Click here to register for your free account today.

Optional CAM Software

CIMsystem MillBox Roland Edition is the dental CAM Software solution developed specifically for DGSHAPE Dental Milling Machines.

Equipped with a simple to follow user interface that is both innovative and appealing, MillBox simplifies the nesting and toolpath creation. The MillBox Interface was specifically developed for immediate use, with exciting new features that allow you to work even faster.

Specially designed for professionals who require simple and reliable tools, MillBox provides high performance in less time to get the work you want processed in a few simple steps.

Additional Information

Expand All | Collapse All
DWX-42W Plus
Millable material Glass ceramics, Composite resin, Titanium, FS Zirconia
Loadable workpiece shape Width Maximum 1.57 in (40 mm)
Depth Maximum 0.79 in (20 mm)
Height Maximum 0.79 in (20 mm)
Operating speed 0.24 to 70.9 in./min. (6 to 1,800 mm/min.)
Spindle speed 15,000 to 60,000 rpm
Rotary axis travel angle A axis ±360°
Number of burs housed 6
Attachable bur Shank diameter 3 mm, dedicated milling bur
Compatible compressed air (oil free with Dryer) Pressure 0.3MPa or higher
Air Capacity
 39ltrs/min or higher
Interface USB
Control command set RML-1, NC code
Power requirements AC 100 to 240 V ± 10%, 50/60 Hz (overvoltage category II, IEC 60664-1), 2.1 A
Power consumption Approximately 190 W
Operating noise During operation 70 dB(A) or less (when not cutting)
During standby 48 dB(A) or less
External dimensions Width x Depth x Height 19.0 x 22.0 x 23.6 in. (482 x 560 x 600 mm)
Weight 135 lbs. (61 kg)
Installation environment Indoor use, Altitude Up to 6,562 ft. (2,000m)
Temperature 41 to 82 °F (5 to 28°C)
Humidity 35 to 80%RH (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, USB cable, Dedicated milling burs, Automatic correction jig, Measuring cup, Hexagonal screwdriver, Hexagonal wrench, etc.

Peace of Mind, Reliability and Support

The DWX-42W Plus offers unmatched reliability and post-sales support that includes a three-year parts 'n all warranty. We also provide online video, educational support and certified service engineers to keep your machine running smoothly.
