DWX-4 compact dental mill

DWX-4 Compact Dental Milling Machine

DWX-4
DWX-4

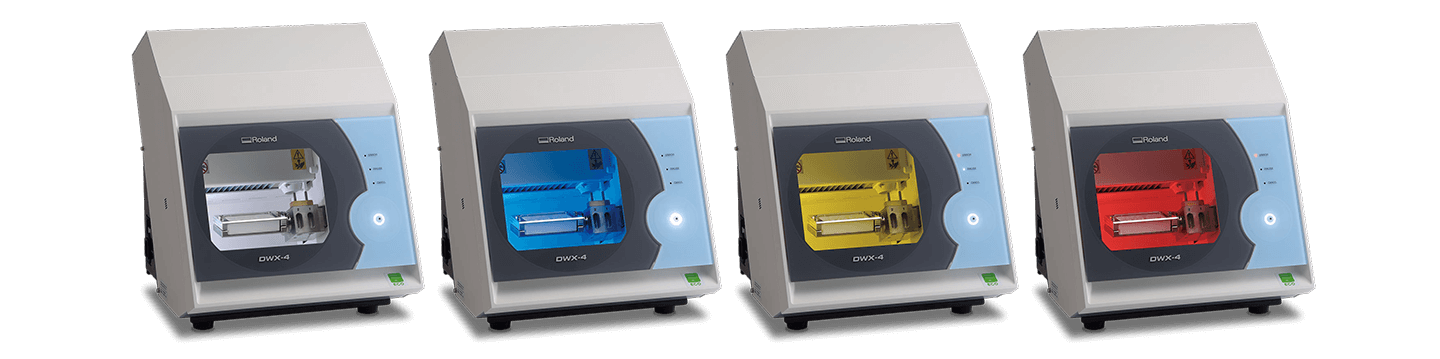

Mill with Confidence and Ease

The DWX-4 Compact Dental Mill is designed for simple operation so that users can quickly set-up and start creating precision prosthetics right out-of-the-box. It combines simultaneous 4-axis milling with simple one-button operation and offers intuitive features such as a colour-coded LED light that signals machine status and an automated tool changer which provides two tools for precision unattended milling from start to finish.

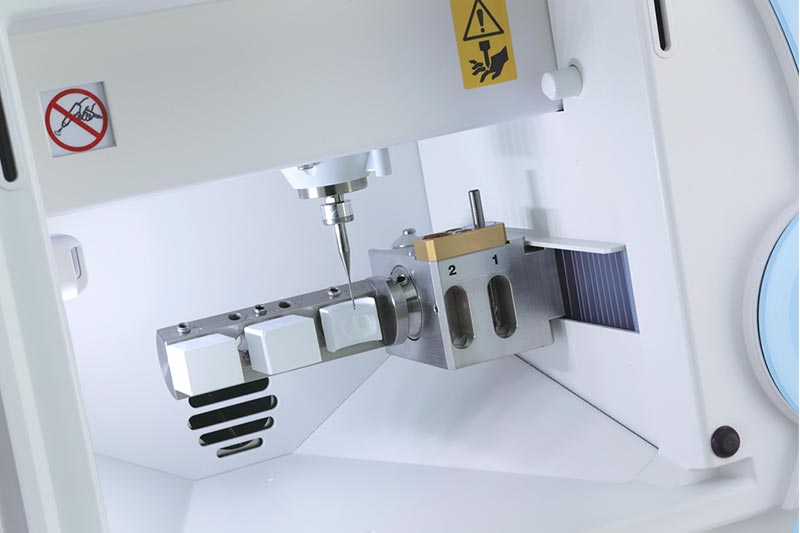

DWX-4 automatic tool changer

Powerful Production Capabilities

The DWX-4 includes an automatic tool changer for two tools, and can be enhanced with the addition of an optional 4-position automatic tool changer which supports up to four different tool sizes.

With an optional multi-pin clamp, the DWX-4W can mill up to four prosthetics in a single production run. The additional multi-pin clamp mills different pin-type materials simultaneously and saves time, labour and costs.

DWX-4 automatic tool changer

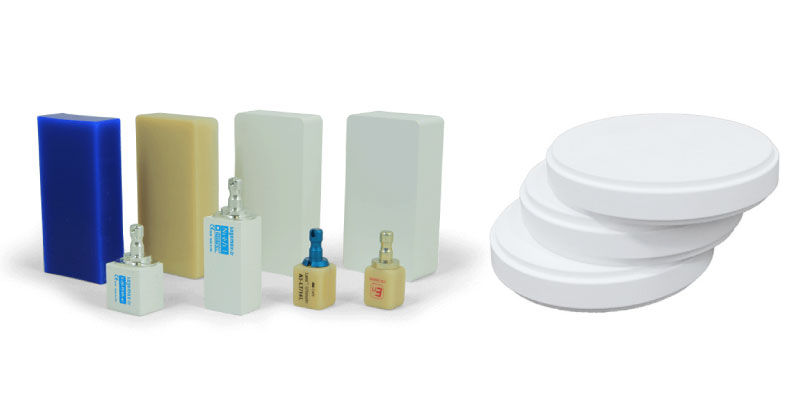

Compatible with Multiple Materials

The DWX-4 is equipped to mill standard blocks and pin-type materials, including wax, PMMA, zirconia. and many of the latest resins and composites.

Roland DG exclusively supplies DMAX consumables to the Australian market including NaturaZ Series materials and SuperCut Series tooling.

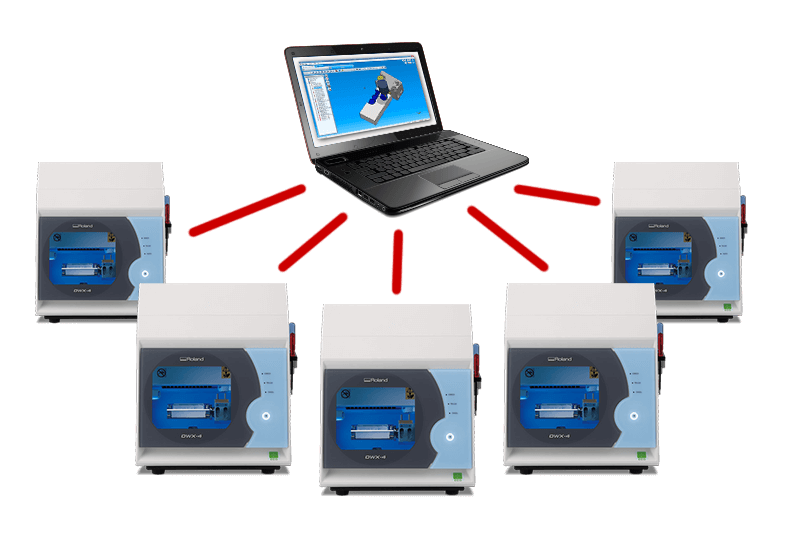

DWX-4 connects to multiple machines

Connect Multiple Machines

Highly scalable, the DWX-4 offers multicast capability that allows you to connect up to four DGSHAPE machines to one computer, making it easier than ever for dental labs to expand their businesses and increase production capacity. The DWX-4 Compact Dental Mill lets labs control the entire process in-house with a single software seat, maximising your investment and resources.

DWX-4 connects to multiple machines

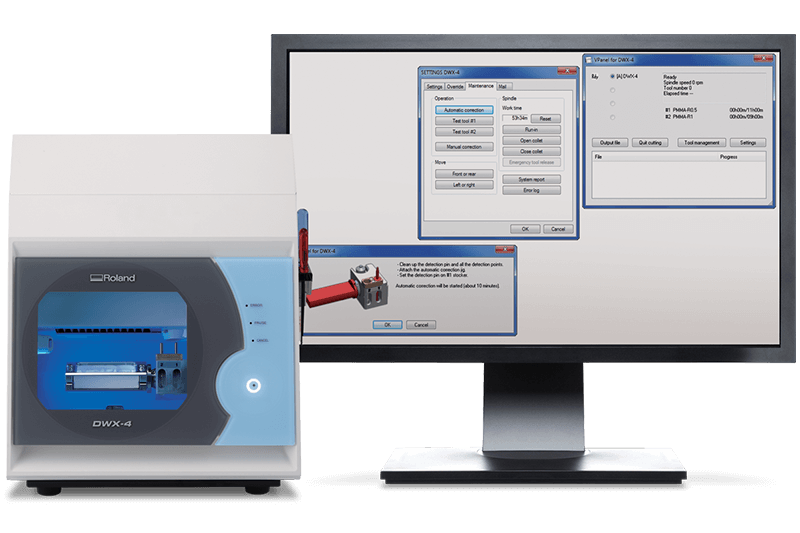

VPanel
VPanel

Virtual Machine Panel

A user-friendly Virtual Machine Panel (VPanel) provides advanced controls so users can operate all machine diagnostics, calibration and milling processes from a desktop. The VPanel also tracks spindle time, tool and collet time, and overall machine time for maintenance.

Clean Milling Area

An integrated air blower prevents excessive dust buildup, while a negative ion generator reduces static electricity when milling PMMA. A dust collection sensor prevents the machine from starting if the vacuum is inadvertently left off.

Economical Open Architecture

The open architecture of the DWX-4 enables production with the latest materials, CAD/CAM software and scanners so you're not limited to the technology you can use. If you already have a production solution, the DWX-4 works perfectly with your existing scanner and compatible CAD/CAM software and eliminates reliance on a single source for materials. Compatible with RML-1 and NC code, the DWX-4 interfaces with your computer through a USB connector.

Optional CAM Software

CIMsystem MillBox Roland Edition is the dental CAM Software solution developed specifically for DGSHAPE Dental Milling Machines.

Equipped with a simple to follow user interface that is both innovative and appealing, MillBox simplifies the nesting and toolpath creation. The MillBox Interface was specifically developed for immediate use, with exciting new features that allow you to work even faster.

Specially designed for professionals who require simple and reliable tools, MillBox provides high performance in less time to get the work you want processed in a few simple steps.

Optional BOFA Dust Extraction System

You will need a dust extraction (vacuum) system with this machine.

Make sure to get one that meets the following conditions:

Static Pressure: 4 kPa or more
Air Quantity: 2 m3/min or more

Use the supplied dust collection hose to connect to your system. You should clean your dust collector and replace your filters regularly.

For more information, visit BOFA International.

Reliability and Peace of Mind

DGSHAPE milling machines combine unbeatable performance with legendary Roland DG reliability, the best post-sales support in the industry and a Three-Year Extended Warranty.


When you purchase a DWX-4, you enjoy the benefit of certified service engineers, dedicated support staff and a wealth of support materials that include educational videos, user manuals, set-up/install guides, and more.


Roland DG's international ISO certification is your quality assurance. Like all DGSHAPE products, the DWX-4 was designed and manufactured at a state-of-the-art, ISO-certified facility. All DGSHAPE products are built at an advanced digital factory one at a time, each by a single assembler with attention to detail given the highest priority.
